Harvesters
VegHarv self-propelled harvesterss
With our self-propelled harvesters, extremely efficient harvesting and packaging solutions can be realized. This can be done, for example, in combination with our VegPack FP-50 flowpack machine. This is a good option for iceberg lettuce and other round products.
The self-propelled harvesters can be supplied in various price and quality levels, driven by 2 or 3 axles, or by a caterpillar drive. Working widths vary from 4 to 12 meters! The harvest belt can be provided with combs, bowls and other holders, depending on the product. Optional are: a sunroof, lighting, heating, etc.
Trailers with built-up conveyor belts on both sides.
The VegHarv self-propelled harvester has a 4WD and diff. lock for good traction. Band width up to 12 m.
The harvest carts on caterpillars are very suitable for wet conditions. Excellent pressure distribution so little damage to the field.
VegHarv information
Benefits
Saving on working time.
Cleaner product delivers with less damage.
Perfect Harvesting
... from almost all crops that need to be harvested by hand such as head cabbage, cauliflower, celery, lettuce, broccoli and so on.
Standard
Automatic belt tensioner.
Variable speed.
Hose set of 10 meters.
Hydraulic connection at the rear.
Quote request
Quote request
Do you have pre-sale questions?
Call us at +31 (0) 88 425 62 40
Or email us at
Quote request
- Hits: 10879
Harvesting Belts, Rigs & Trailers for Vegetables
VegHarv
Harvesting machines vegetables
- Efficiency: These machines significantly reduce the time and labor required for harvesting, allowing for quicker and more efficient operations.
- Customization: With various models and customizable options, you can select the machine that best fits your specific needs, whether it's for different lengths, widths, or special features.
- Durability: Built with high-quality materials and robust engineering, these machines are designed to withstand tough conditions and provide long-lasting performance.
- Versatility: Suitable for a wide range of vegetables and harvesting conditions, these machines offer flexibility in their application.
- Advanced Features: Many models come with innovative features such as automatic box filling, upper- and lower-box racks, and large ground clearance, enhancing their functionality and ease of use.
- Sustainability: Designed to be energy-efficient and environmentally friendly, these machines help reduce the carbon footprint of your farming operations.

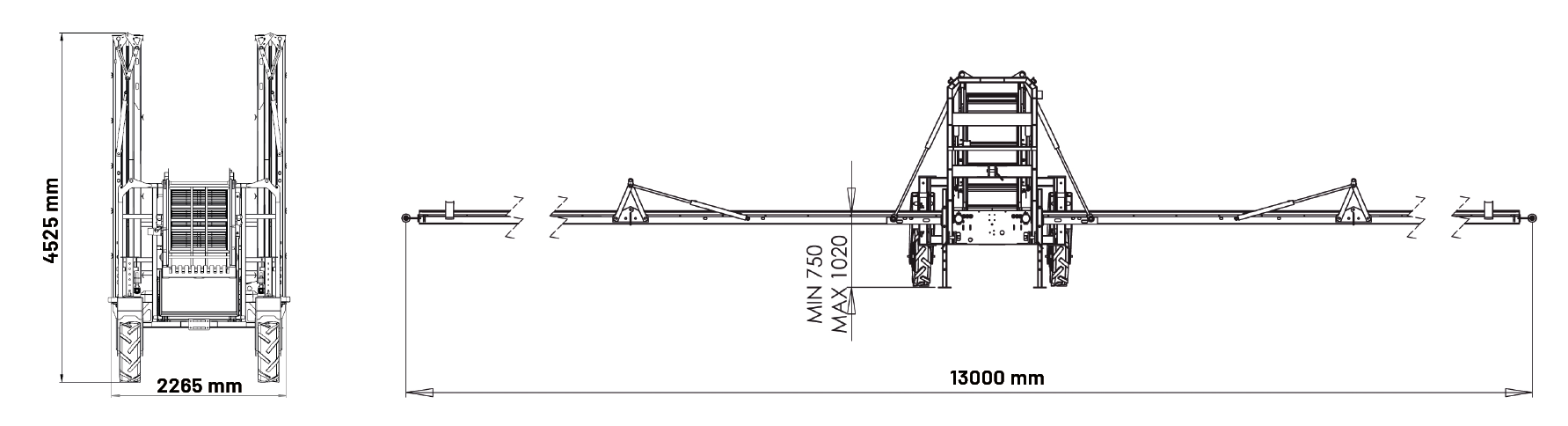

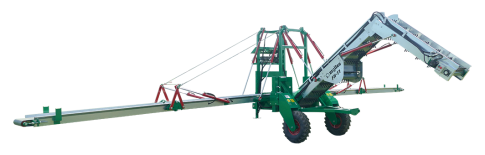

VegHarv AT1
Harvesting belt mounted on tow bar
The VegHarv-AT1 harvesting belt is a suspended machine with support wheels mounted on the tow bar, designed for harvesting vegetables. Featuring a belt harvesting system and rear discharge to a trailer, it enhances harvesting efficiency by 30%.
- Working width: from 12 to 21 m.
- Folding of the harvesting arms with 2 or 3 hydraulic maneuvers.
- Main channel with 2 hydraulic maneuvers for height and tilt adjustment.
- 600mm or 800mm wide.
- Rod system against overturning/product rotation.
- PVC conveyor belts with or without ribs.
- Harvesting: Broccoli, Pumpkin, Lettuce, Melon, Watermelon

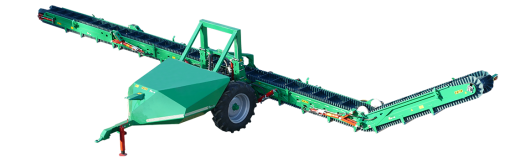

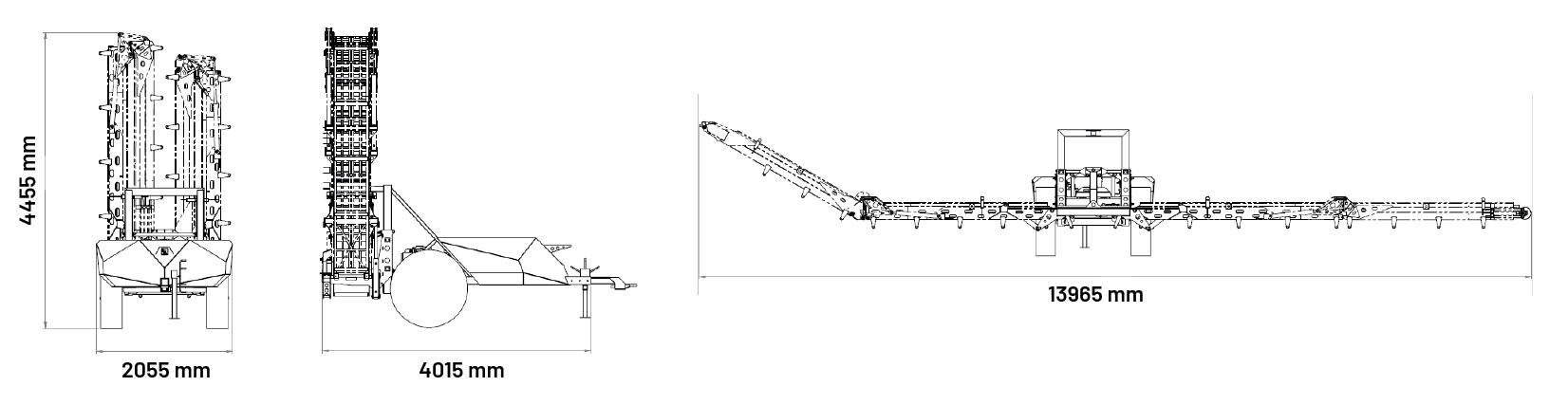

VegHarv AT4
Towed Harvesting Belt
The VegHarv-AT4 harvesting belt is a trailed machine designed for vegetable harvesting. Its harvesting system, featuring individual padded belts, ensures a 50% improvement in product handling and care.
- Trailed equipment with pump at the PTO shaft.
- Individual harvesting system with high quality padded belts.
- 80/90 fruits per minute.
- Side unloading system on trailer.
- Hydraulically adjustable height.
- Curb weight: 4000 kg.
- Tractor requirement: +80 hp.
- Maximum product weight: 12 kg.
- Harvesting: Broccoli, Pumpkin, Cabbage, Pepper, Melon, Watermelon

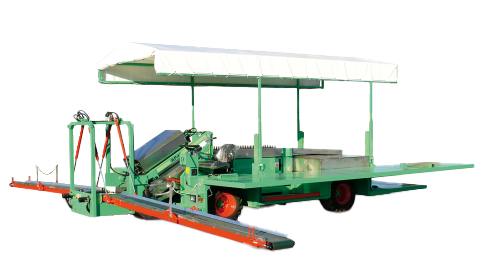

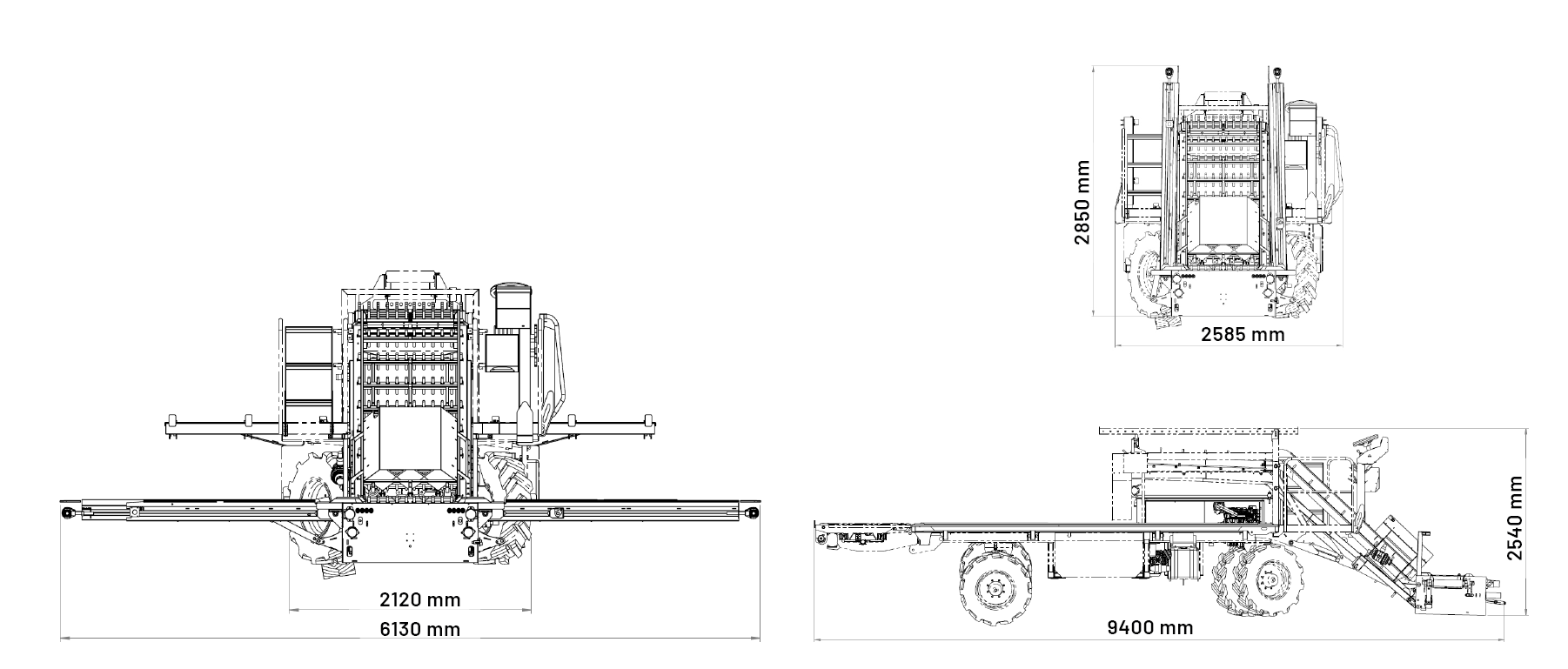

VegHarv Compact
Self-propelled harvesting trailer & box palletizing platforms
The VegHarv COMPACT is a self-propelled machine designed for vegetable harvesting. Its belt harvesting system and side platforms for box palletizing increase harvesting efficiency by up to 30%.
- Self-propelled equipment.
- Harvesting by belt conveyor system.
- Hydraulic folding arms.
- Side platforms for crates laying.
- Possibility of cleaning system and crawler advancement.
- Curb weight: 5500 kg.
- Maximum product weight: 6 kg.
- Harvesting: Broccoli, Pumpkin, Cabbage, Lettuce

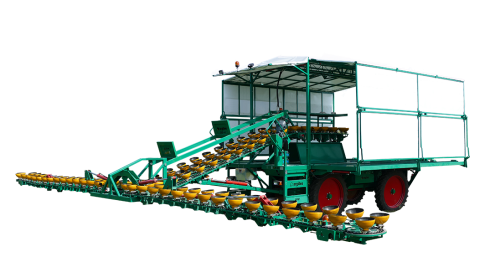

VegHarv Scoop
Self-propelled harvesting trailer with direct packaging
The VegHarv-Scoop is a self-propelled machine designed for vegetable harvesting. Its rubber scoop harvesting system ensures individual product care of up to 50%.
- Self-propelled equipment.
- Rubber bucket collection system.
- Individual product care.
- Direct harvesting from the field to the market with its flowpack systems, crate-boxing and bagging systems.
- Curb weight: from 10000 kg to 12000 kg.
- Maximum product weight: 6 kg.
- Also available with caterpillar tracks
- Harvesting: Broccoli, Pumpkin, Zucchini, Cabbage, Lettuce, Leek
Enhanced Efficiency
Fast and precise harvesting, reducing harvest times.
Cost Reduction
Product utilization increases and operational costs are reduced.
Optimized Ergonomics
Enhance operator comfort and safety during long workdays.
Durability and Quality
High-strength materials, ensuring long-term performance.
Quote request
Request a quote now and take the first step towards enhancing your vegetable processing operations.
Click to open quote request
Read more …VegHarv Harvesting Rigs
- Hits: 2480
Aluminium Harvesting Belts
VegBelt ergonomic harvesting on working level
Family-owned company since 1988, specializing in designing and constructing harvesting belts for the agricultural industry.
Focus on efficiency, ergonomics, and product quality during the harvesting process
Operations run from the production facility in Noord-Holland. Fast and efficient assistance from the team in Holland and global partners.
Up-to-date stock of spare parts for all current and older models.
General Features
-
Flexible fixed mount and automatic belt tensioner. -
Hydraulic connections for easy setup.
-
Flexible fixed mount and automatic belt tensioner.
-
Plug and play system
-
Made in Holland

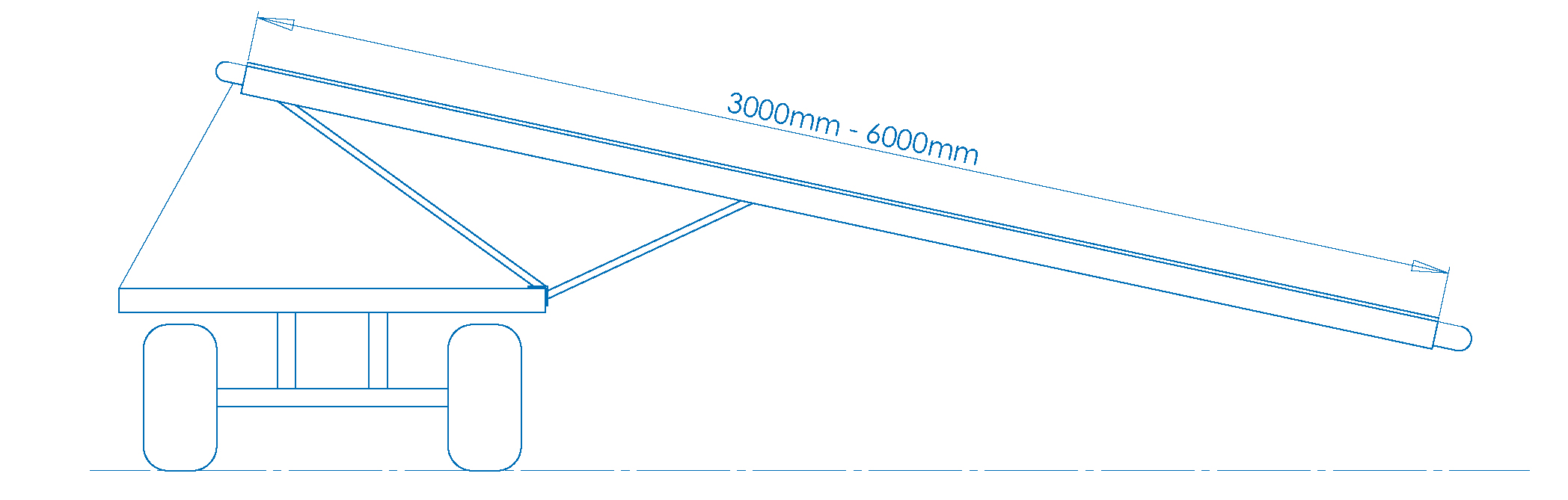

Compact
Extremely low weight
Designed for small harvest groups, offering a lightweight and easy-to-use conveyor system. It features stepless speed adjustment and an automatic belt tensioner, making it suitable for heavier crops like melons, cabbages, and pumpkins. With a practical capacity of 3,750kg/hour, it ensures efficient and clean harvesting, enhancing productivity and ergonomics.
All Rounder
Heavy Crops
Versatile and robust solution designed for harvesting various crops, including heavy ones. It features a unique self-supporting construction, stepless speed adjustment, and an automatic belt tensioning system, ensuring efficient and clean harvesting with a practical capacity of 9,500 kg/hour. This model is available in lengths from 6 to 12 meters and widths up to 57cm, making it adaptable to different harvesting needs.
Crates
Double Boxing conveyor
The harvesting belt is equipped with upper- and lower box racks, making it suitable for various crops. Designed for efficient and clean harvesting with a practical capacity of 9,500 kg/hour. It features a unique self-supporting construction, stepless speed adjustment, and an automatic belt tensioning system. Available in lengths from 6 to 12 meters and widths up to 57cm.
Box-over
efficiently by rolling over boxes
Harvest various crops efficiently by rolling over boxes with its hydraulically extending support. This model features a unique self-supporting construction, stepless speed adjustment, and an automatic belt tensioner, ensuring a practical capacity of 11,000 kg/hour. Available in lengths from 8 to 12 meters and widths up to 57cm, it eliminates walking movements towards the harvesting trailer, significantly improving production.
Pathfinder
rollable through trailer
Designed for fields with fixed driving paths, featuring a long length of up to 16 meters and a semi-automatically foldable cutting surface for compact transport and storage. It offers stepless speed adjustment, an automatic belt tensioner, and a practical capacity of 4,375 pieces/hour. This model is lightweight, strong, and compatible with various crops, ensuring efficient and clean harvesting with minimal soil compaction.
Free
no people are needed inside the harvesting trailer.
Equipped with a small conveyor at the end that rotates and changes direction to fill four boxes simultaneously. It features stepless adjustable speed, automatic belt tensioners, and fall breakers, ensuring efficient and clean harvesting with a practical capacity of 8,000 pieces/hour. This model is available in lengths up to 15 meters and widths up to 57cm, designed for use on fixed roads in the field to prevent soil compaction and improve efficiency.
VegBeet |
Custom made
aluminum harvesting belts
Adventages:
-
Saving on working time. -
Cleaner product yields with less damage.
Perfect harvesting:
... from almost all crops that have to be harvested by hand such as head cabbage, cauliflower, broccoli, celery, lettuce, and so on.
Standard:
-
Automatic belt tensioning device.
-
Adjustable speed.
-
Hose pack of 10 meters.
-
Hydraulic connection at the rear.
-
Hydraulic height adjustment.
Quote request
Transform your harvesting process with VegBelt Aluminium Harveting Belts. Contact us today to learn more and take the first step towards a more efficient and productive future!
Click to open quote request
